Factory High Pressure PU Polyurethane Foam Insulation Spray Machine For Wall And Roof

1.0 Sets
MOQ
$5,500.00(1 - 1 Sets) $4,500.00(>=2 Sets)
Prix
Factory High Pressure PU Polyurethane Foam Insulation Spray Machine For Wall And Roof
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor
UNIQUE SELLING POINT: Easy Maintenance
After-sales Service Provided: Engineers available to service machinery overseas, Online support
Driven system: pneumatic
Painting: Customized
Material: POL&ISO
Cleaning system: Pneumatic cleaning
Hose length: 15m(standard)
Max. hose length: 60m
Mixing ratio: 1:1, fixed ratio
Motor: automatic spray paint machine
Power(W): 8-10KW
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Informations de base
Conditions de paiement et expédition
Packaging Details: High pressure PU polyurethane foam insulation spray machine for wall and roof is packed in wooden case.
Supply Ability: 15 Set/Sets per Month PU foam spray machine
Description de produit
Product Description

Brief introduction

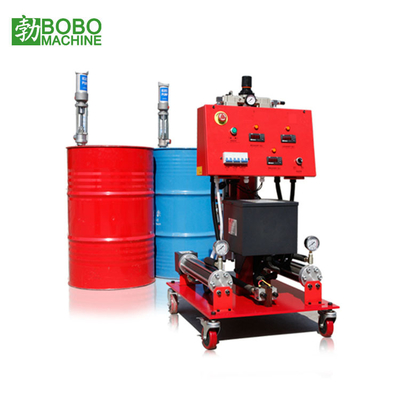

BDF-II pneumatic high pressure PU foam spraying machine is design for site-work, with accuracy measuring, even mixing, movable and portable structure and balance of cost and performance. The HP foam spraying machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose.

No
Description
Data
1
Model
BDF-II
2
Max. flux capacity
6-9kg/min
3
Max. material temperature
90 centigrade
4
Mixing pressure
12Mpa
5
Heating capacity
8kw
6
Max. hose length
60m
7
Drive method
Pneumatic with air compressor
8
Motor power
220v, 50HZ, single phase(can be customized)
9
Demension
600*600*1100mm
10
Weight
150kg
11
Standard configuration
main machine, meterial pump, spaying gun, 15m long heating hose

Spray gun

The GZI series spray gun is the most popular model with 10 years marketing recognition. Which is maintained with low cost for stable performance.

Heating hose

The heating hose is used to heat the raw material during hose flowing before spraying, which can keep the right temperature to get good foaming result.

Feeding pump

The spray foam machine doesn't equip the material tank for portable application. So the feeding pumps are necessary to suck up the material from big steel drum for continuous work.

Connecting Hose

The connecting hose is used to connect the heating hose to spray gun, which is made from high pressure rubber hose.

 1. Can spray foam machine be 220V, 60Hz?

Re: We can customize the electric system according to your requirements.

2. If I buy the spray foam machine, do I need to buy any other parts?

Re: We will provide all the necessary accessories going with the machine including spray gun heating hose, material pump etc., that means the machine is ready to work when you receivw it.

3. Can the heating hose length be extended?

Re: Yes, the heating hose length can be extended to 60/90m for different machines, and we will provide one set standard heating hose going with the machine, which length is 15m.

4. Can you provide the raw material along with the machine?

Re: We can supply the raw materials for fire proof, wall , roof insultion.

5. What's the difference between polyurethane spray foam machine and polyurea spray foam machine?

Re: The polyurethane spray foam machine is widely used for wall, roof, refrigerator, and box, pipe insulation purpose, and the polyurea spray foam machine is mainly used for wall, roof, refrigerator, tank body, pipeline protection coat for abrasive surface, waterproof, antiseptic purpose.

6. What's the HS code of the spray foam machine.

Re: The HS code of the machine is 8477800000.
